Reinforcement
The Reinforcement design result shows the applied and missing shear reinforcement for the shear reinforcement of reinforced concrete shells.
Reinforcement is available for:
- RC shell shear reinforcement
Result selection
To display Reinforcement results, first select the basis for the result:
- Load combinations – then select the specific load combination
- Load groups – then select the group type and the force or moment component to maximize – the governing combination for that component is generated automatically
In addition, select the reinforcement state:
- Applied
- Missing
Result display
Reinforcement uses 4 display types: Graph, Contour lines, Colour palette and Sections.
Graph

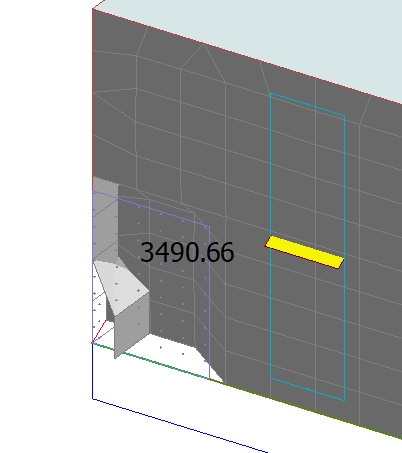

Reinforcement results are displayed as a graph.
Contour lines

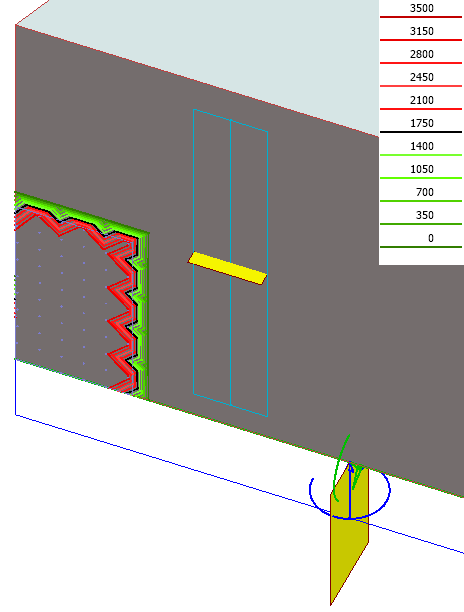

Reinforcement results are displayed as contour lines.
Colour palette

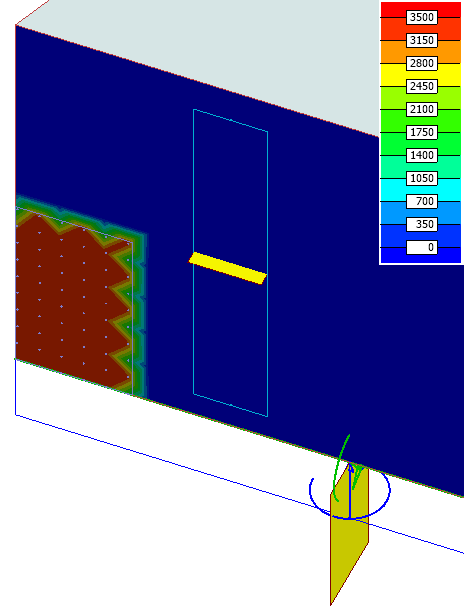

Reinforcement results are displayed as a colour palette.
Sections
Reinforcement results are displayed as sections.
