Value

---

The Value design result shows the numeric deflection value for bars and shells.

Value is available for:

• Deflection

---

Result selection

To display Value results, select the following parameters from the result lists:

• element type, Bar or Shell
• basis for the result, Load combinations or Load groups
• for Load combinations, the specific load combination
• for Load groups, the group type and the force or moment component to maximize – the governing combination for that component is generated automatically

Result display

Value results use the Colour palette display type only, with the standard Palette and Others tabs in the Display options dialogue.

Colour palette for Bar elements

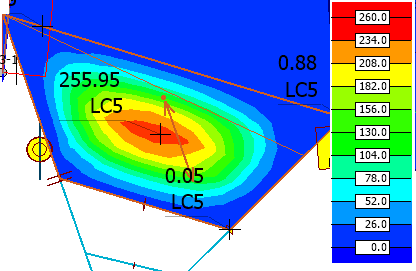

Colour palette for Shell elements
