Bedding moduli
The Bedding moduli result shows the bedding stiffness values used for soil support evaluation of foundation slabs. It lets you review the calculated support stiffness distribution and its directional components after the dedicated bedding modulus analysis has been performed.
Bedding moduli is a special result type that is available only for the Bedding modulus calculation analysis.
Depending on the selected component, the result can represent vertical or horizontal bedding behaviour, and it can also distinguish between response such as compression for the selected component.
To read more about the calculation itself, see the topic:
User interface ➔ Tab menus ➔ Analysis ➔ Calculate ➔ Bedding modulus calculation
Result selection
The following selections are required before the result can be shown:
- Bedding modulus component – select the component to display, for example Kz', compression
- Calculation type – select the calculation result to evaluate, for example 1st order analysis, U, Ua, Us
Only bedding modulus components and calculation types that are available in the performed bedding modulus analysis are shown in the result lists.
Result display

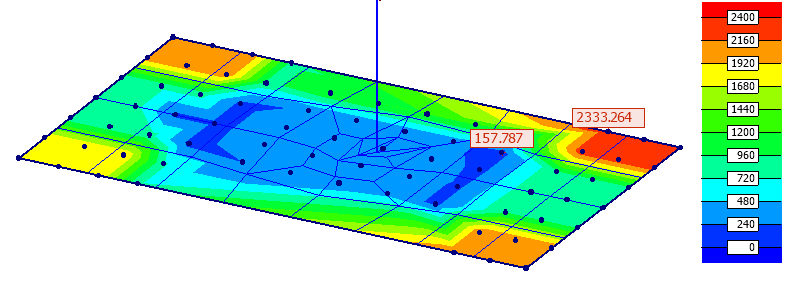

The Bedding moduli result is displayed as a Colour palette only.
