Soil OCR
The Soil OCR analysis result shows the overconsolidation ratio across soil elements, allowing you to evaluate whether the soil is in a normally consolidated or overconsolidated state under the applied loading.
Soil OCR is available for the following analysis context:
- Load combinations
Result selection
To display Soil OCR, you must select:
- load combination
Only the selections relevant to this result type are shown.
Result display
Soil OCR uses a specialised result display that is fixed for this result type.

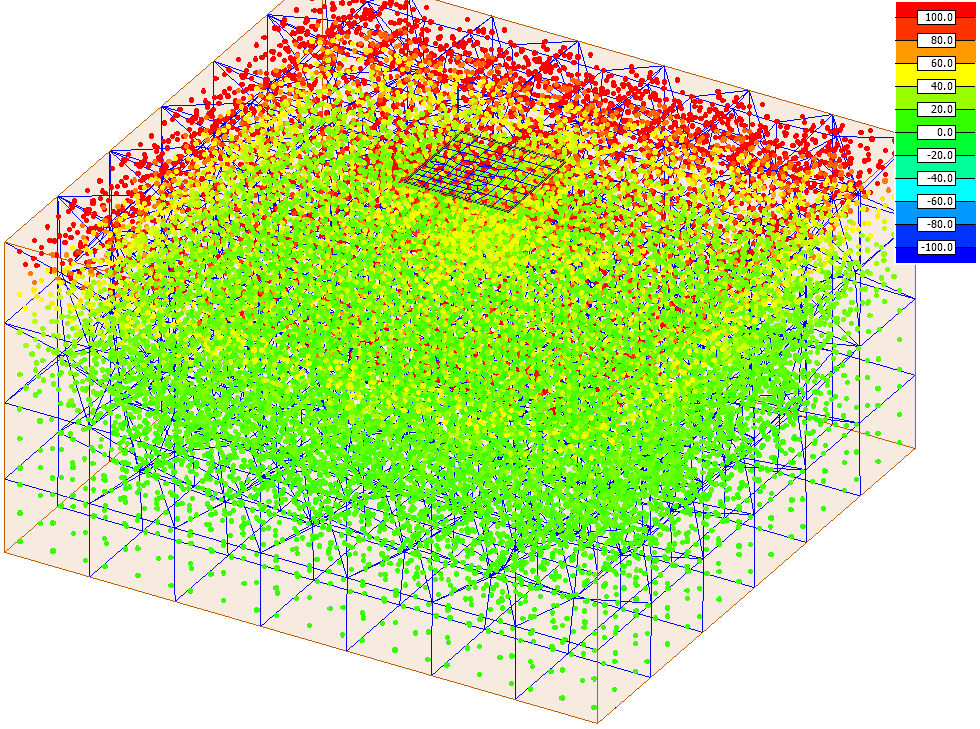

The result is shown as a colour palette, where a coloured dot is placed within each finite element to represent the overconsolidation ratio of that element.
