Soil plastic condition
The Soil plastic condition analysis result shows which locations within the soil have reached a plastic state under the applied loading, allowing you to identify where the soil material has exceeded its yield criterion.
Soil plastic condition is available for the following analysis context:
- Load combinations
Result selection
To display Soil plastic condition, you must select:
- load combination
Only the selections relevant to this result type are shown.
Result display
Soil plastic condition uses a specialised result display that is fixed for this result type.

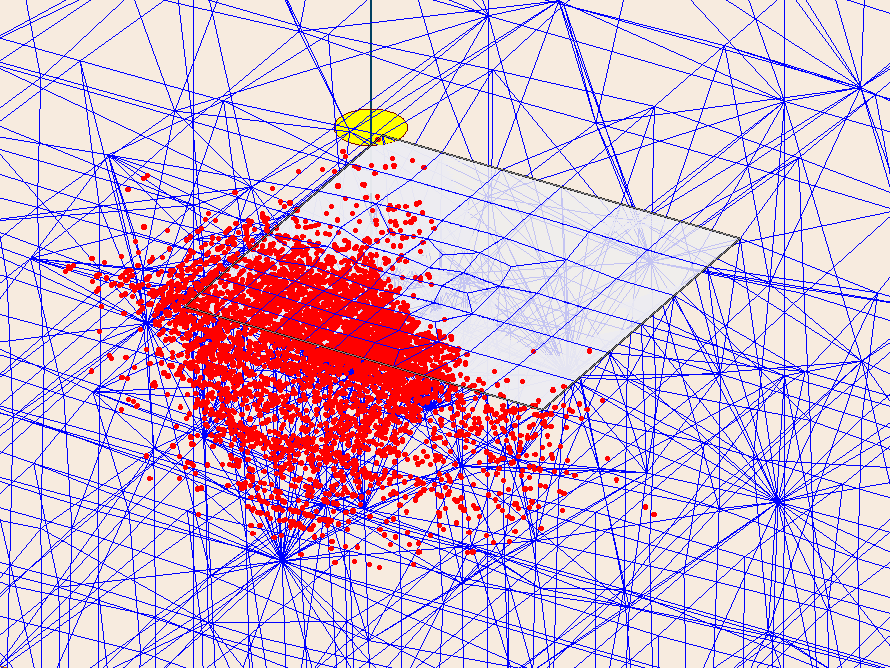

Each soil location that has reached a plastic state is marked with a red dot placed within the corresponding finite element.
